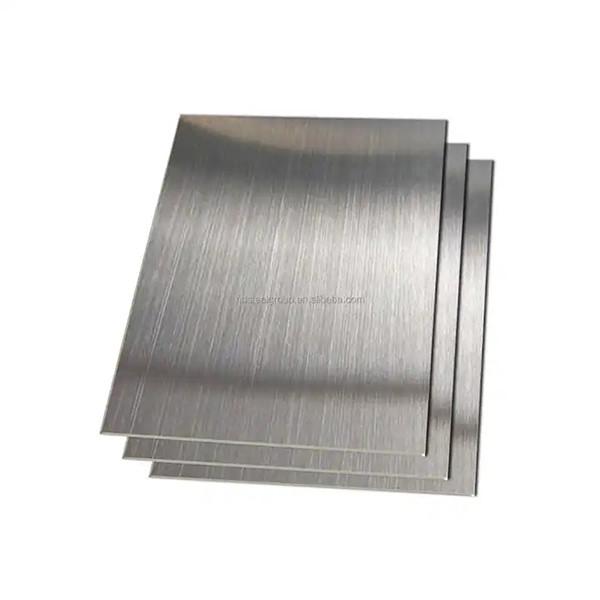

Hastelloy c276 UNS N0276 2.4819 Nickel Alloy plate /Sheet

Model Number : Hastelloy c276

MOQ : 1ton

Price : negotiation

Payment Terms : T/T, D/P, L/C

Supply Ability : 5000ton/month

Delivery Time : 7-10 natural days

Packaging Details : Standard export package

Name : Nickel Alloy plate

Ultimate Strength (≥ MPa) : 690

Elongation (≥ %) : 40

Type : Nickel Plate

Application : Industry construction building

Grade : Nickel Alloy

Ni (Min) : 52-60

Contact Now

Hastelloy c276 UNS N0276 2.4819 Nickel Alloy plate /Sheet

Hastelloy C276
Hastelloy C-276 alloy is a nickel-chromium-molybdenum alloy containing tungsten. It has a face-centered cubic lattice structure.
Because of its extremely low content of silicon and carbon, it is considered a universal anti-corrosion alloy. Both have good
corrosion resistance. Therefore, in the past 30 years, it has been widely used in the harsh corrosive environment, such as
chemical industry, petrochemical industry, flue gas desulfurization, pulp and paper, environmental protection and other industrial
fields.
Hastelloy C-276 has excellent corrosion resistance to most corrosive media in both oxidation and reduction atmospheres.
Hastelloy C-276 has excellent resistance to pitting, crevice corrosion and stress corrosion. Among them, the higher content of Mo
and Cr makes the alloy have chloride ion corrosion resistance, especially for high-concentration chloride solutions such as ferric
chloride and copper chloride, which has significant corrosion resistance. Hastelloy C-276 alloy is one of the only materials that
are resistant to corrosion by wet chlorine, hypochlorite and chlorine dioxide solutions, and is suitable for various
concentrations of sulfuric acid solutions. It is one of the few that can be applied to heat concentration One of the materials of
sulfuric acid solution.
Hastelloy C276 Chemical composition
Ni: 52-60 Cr: 14.5-16.5 Fe: 4-7 Mo: 15-17 P: ≤0.04
C: ≤0.02 Mn: ≤1 Si: ≤0.08
Hastelloy C276 Physical properties
densityg/cm3:8.9
Melting point℃: 1325-1370
Thermal conductivityλ/(W/m•℃) : 10.2(100℃)
Specific heat capacityJ/kg•℃: 407
Elastic ModulusGPa: 208
ResistivityμΩ•m: 1.25
Linear expansion coefficienta/10-6℃-1: 11.7(100℃)
Hastelloy C276 Mechanical properties(Detect the minimum value of mechanical properties at 20℃)
Heat treatment method: Solution treatment
Tensile strengthσb/MPa: 690
Yield Strengthσp0.2/MPa: 283
Elongationσ5 /%:40

Type	Plate
Thickness	0.3-150mm
Length	3000mm,5800mm,6000mm,9000mm,12000mm,etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Standard	ASTM,JIS, AISI, GB, DIN, EN
Surface	BA,2B,NO.1,NO.4,4K,HL,8K
Certification	ISO, SGS
Technique	Cold Rolled, Hot Rolled
Edge	Mill Edge Slit Edge
Quality	SGS Inspection
Price Term	CIF CFR FOB EX-WORK
Payment Terms	T/T L/C and Western Union etc
Application	It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc.

SEQUENCE	DIN/EN	UNS NO	GENERIC TERM	INGREDIENT
1	2.4819	N10276	Hastelloy C-276	57Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C
2	2.4610	N06455	Hastelloy C-4	65Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C
3	2.4602	N06022	Hastelloy C-22	56Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C
4	2.4675	N06200	Hastelloy C-2000	59Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C
5	2.4665	N06002	Hastelloy X	47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B
6	2.4617	N10665	Hastelloy B-2	69Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C
7	2.4660	N10675	Hastelloy B-3	65Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C
8		N06030	Hastelloy G-30	43Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C
9		N06035	Hastelloy G-35	58Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C

Hastelloy c276 UNS N0276 2.4819 Nickel Alloy plate /Sheet
