439L 409L Thin Wall 6m Stainless Steel Exhaust Pipe

Brand Name : XINFUTIAN

Model Number : 409L,439l,441.304

Certification : ISO,BV

Place of Origin : JIANGSU

MOQ : Negotiable

Price : Negotiation

Supply Ability : 1000 Ton Per Month

Delivery Time : 5-10 working days

Packaging Details : Standard Seaworthy package or as the customer's requirement

Name : Stainless Steel Welded Tube

Length : 6m。5.8m as customzied

Service : OEM/ODM, OEM, 24 Hours Online

Type : round pipe / tube,Welded,

Feature : Better Mechanical Property

Thickness : 0.8-2.0mm

Contact Now

Stainless Steel 439L 409L Exhaust Pipe Thin Wall Stainless Steel Tube

439 stainless steel tube is a ferritic stainless steel that outperforms Type 409 and Type 436 in both oxidation resistance and corrosion resistance. Special attention to chemical composition combined with special processing give 409 stainless steel tube optimum formability that is reproducible, coil after coil, and heat after heat. This provides special advantages when producing difficult-to-form exhaust systems components. Oxidation and corrosion resistance that is superior to Type 409 makes 439 stainless steel tube attractive for numerous automotive exhaust applications.

Typical uses include tubular manifolds and other exhaust system components where temperatures may exceed the oxidation limit of Type 409 and Type 436, or where wet corrosion resistance, particularly to chlorides, is needed.

1.chemical composition

Country Standard Grade (%)Chemical Composition
　　
　　
　　
　　
　　
　　
　　
　≤　

　　
　　
　　		 C Si Mn P S Cr Ni 　N　 Ti
USA ASTM 439 0.03 1.00 1.00 0.04 0.03

17.0-

19.0

≤

0.5

≤

0.04

 0.2+4(C+N)－1.10
Ger DIN 1.4510 0.05 1.00 0.00 0.04 0.015 16.0-18.0 - - 4(C+N)－0.80

2. Mechanical Property

Standard Mechanical Property
　　
　　
　　

Tensile Strength

 Yield Strength Elongation(%) Hardness
　　
N/m㎡ (≤)N/m㎡ (≥)% (≤)HV
　　
ASTM ≥415 205 22 180

Detection method:


The company has a complete testing method (squashed, curved, expanding test, mechanical performance test) to ensure the production of 439L stainless steel pipe to meet the national standard.

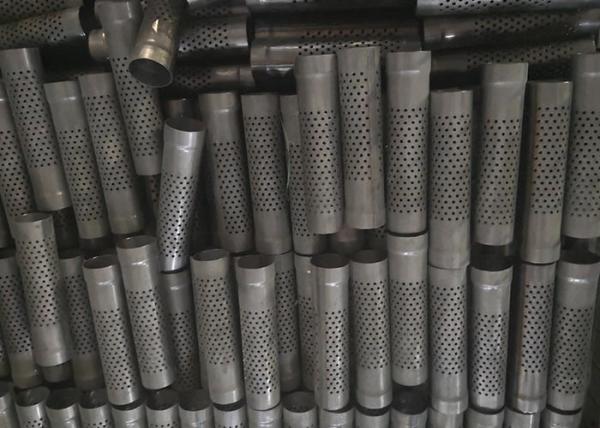

Stainless Steel Welded Tube Pictures

439L 409L Thin Wall 6m Stainless Steel Exhaust Pipe
